Displaying Metric and Imperial Units on a Single Dimension Line


Reference Number: KB-00055
Last Modified: July 15, 2021

The information in this article applies to:

Chief Architect Premier or Chief Architect Interiors



QUESTION

I would like to have a dimension string in my plan display both metric and imperial units at the same. How can I accomplish this task?


ANSWER

Both imperial and metric units can be displayed for dimensions by utilizing the Primary and Secondary Format options. You can specify an individual dimension line to display both units of measurement, or you can setup your Dimension Defaults so that all dimension lines in your plan display both units of measurement.


To modify an individual dimension line

  1. Using the Select Objects tool, select the dimension line you'd like to modify, then click the Open Object edit button.


  2. On the Secondary Format panel of the Dimension Line Specification dialog that displays:

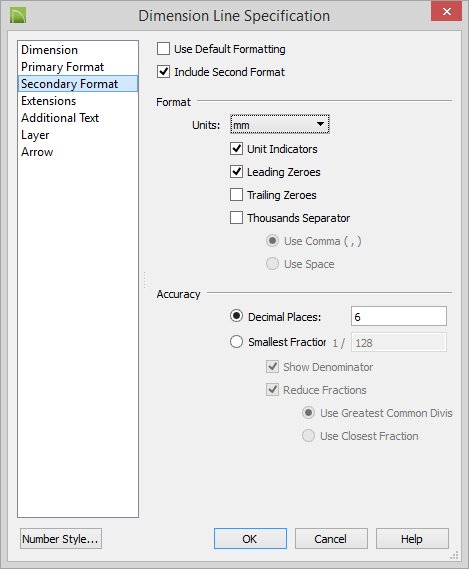

    Secondary Format panel of the Dimension Line Specificationd dialog

    • Uncheck Use Default Formatting.

    • Check Include Second Format.

    • Use the Units drop-down under the Format section to select a unit of your choice.

    • Uncheck Trailing Zeros and specify the desired Accuracy.

    • Click OK to confirm the changes and close the dialog.

      Note: If you're prompted with a Question dialog asking if you'd like to disable Auto Refresh Dimensions, select Yes to proceed.


  3. You can now see that you have modified the dimension so that it displays both metric and imperial units.

    Floor plan view showing a dimension line with an imperial and metric measurement

Note: Settings (including the Secondary Format) specified for the edited dimension line will be used when using the Add Segment edit handle.


To change your dimension defaults

  1. To change your dimension defaults so that both units of measurement are displayed, select Edit> Default Settings , expand the Dimension category, select Dimensions from the list, then click Edit.

    Expand Dimension, select Dimensions, then click Edit in the Default Settings dialog


  2. In the Saved Dimension Defaults dialog, select an Available Dimension Default that you would like to customize, then click Edit once again.


  3. On the Secondary Format panel of the Dimension Defaults dialog that displays next, check Include Second Format and specify your desired settings.

    Secondary Format panel of the Dimension Defaults dialog


  4. Once your desired changes have been made, click OK and/or Done on each of the dialog boxes.
