Creating a T-shaped Staircase

Reference Number: KB-00597
Last Modified: July 19, 2021

The information in this article applies to:

Chief Architect Premier or Chief Architect Interiors



QUESTION

How can I connect three staircases to form a T-shape?


ANSWER

In Chief Architect, multiple stair sections can be connected using stair landings.  Up to five stair sections can be connected to a single landing, allowing a wide variety of staircase and landing combinations in your plans.

There are a couple of ways to create a stair landing. You can draw the desired landing shape using the CAD tools and then convert it into a landing, which is very useful in some situations; however, an easier method uses the Straight Stair tool.


To create a T-shaped landing

  1. Select Build> Stairs> Straight Stairs  from the menu, then click and drag the first section of stairs in floor plan view.


  2. With the Straight Stairs  tool still selected, click and drag a second section of stairs running perpendicular to the first, with the corners touching.

    • The bottom edge of the second stairs should be close to the top edge of the first.

      Two Flights of Stairs, One Perpendicular, bottom corner of second touching top corner of first


  3. With the Straight Stairs  tool still selected, click in the space between the two staircases. A landing will be created and the stairs will form an L-shaped design.

    Clicking in the space between the stairs creates a landing that connects them


  4. Draw the third staircase using the same procedure.

    Create a stairway by clicking and dragging from the middle of an empty edge of a landing

    • Click on the landing and drag away from it to produce a stair section that continues upward from the landing.

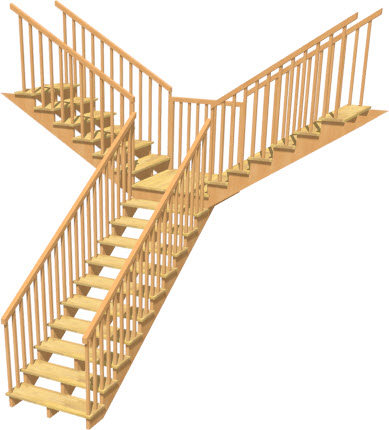

      3D view, one stairway going up, landing splitting into two perpendicular stairways going up

    • Click at a point away from the landing and drag towards one of the free edges not occupied by an existing stair section to produce stairs that build up from the floor towards the landing.


  5. Select 3D> Create Perspective View> Floor Overview from the menu to see the results in 3D.

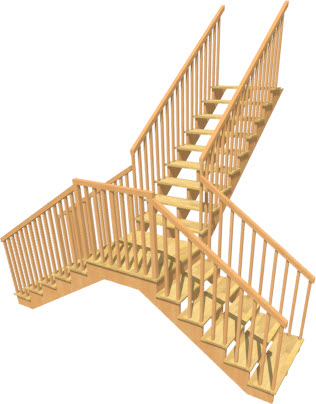

    These steps can easily be modified to have two stair sections come up to meet a single 3rd section.



    To modify the parameters of your new stair case, hold the Shift key on your keyboard, and select each stair section to modify all of them at the same time.
